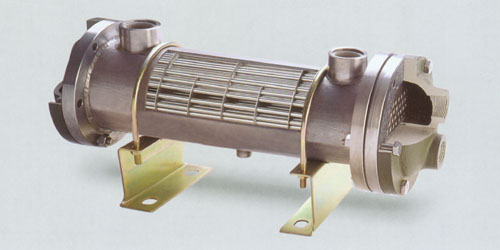

Water-cooled Heat Exchanger of BC（Y） Series （KAMUI ®）

Main Characteristic of BC(Y)

BC(Y) series water-cooled heat exchanger is a bare-tube one(with rolling fin outside),of traditional structure.The small-size product is the
immovable type of the ture-plate,the model is BC.The model BCY are medium-large products,which are the moving tube-plate type.
   The heat tube is made of bare one (without rolling fin outside),which have high geat coefficient of memberance outside flow and better
ability to resist pollution.suitable for cooling of dirtier fluid and higher viscidity,heat exchanging of water to water and water to air.
   We can select stainless steel or special alloy for BC(Y) series according to customers requirements .They are suitable for heat exchanging
in chemical industy,high-temperature medium and sea water,etc.
   Because the model BC(Y) of BC series adopts the moving tube-plate,the core of the tube can be dismantled to clean and repair.
   The BC series products cover market more widely.We can design and manufacture various coolers,from small to big size,according to customers requirements.

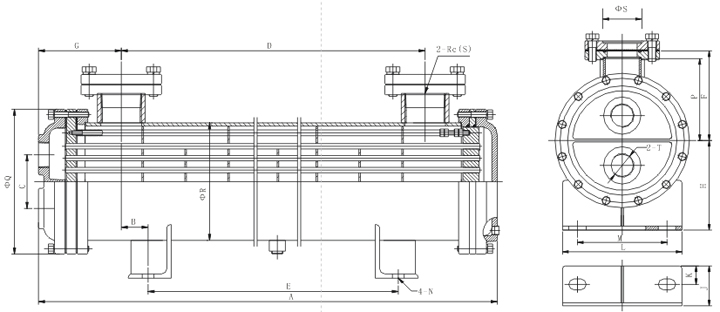

The Construction Scheme of
the Water-cooled Heat Exchanger of BC Series

-------------------------------------------------------------------

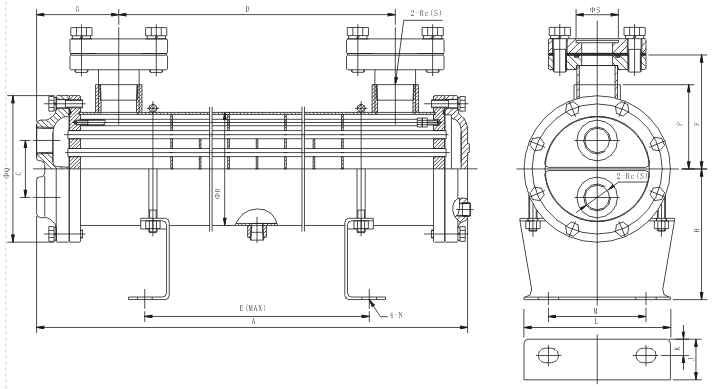

The Construction Scheme of
the Water-cooled Heat Exchanger of BCY Series
