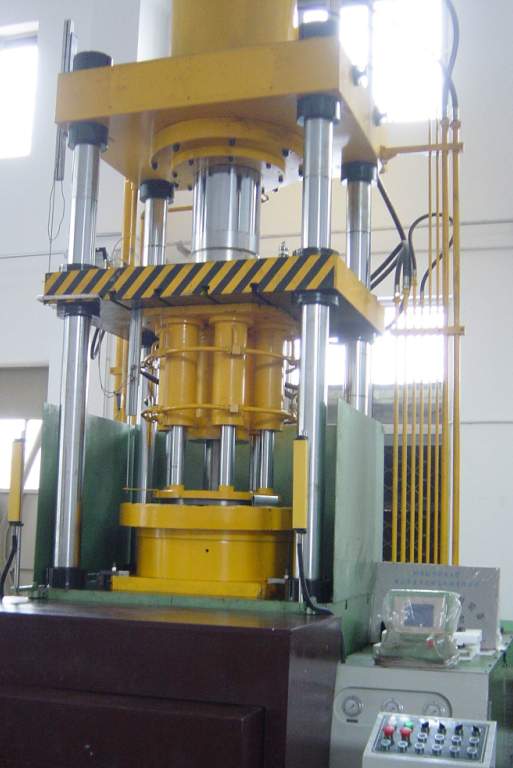

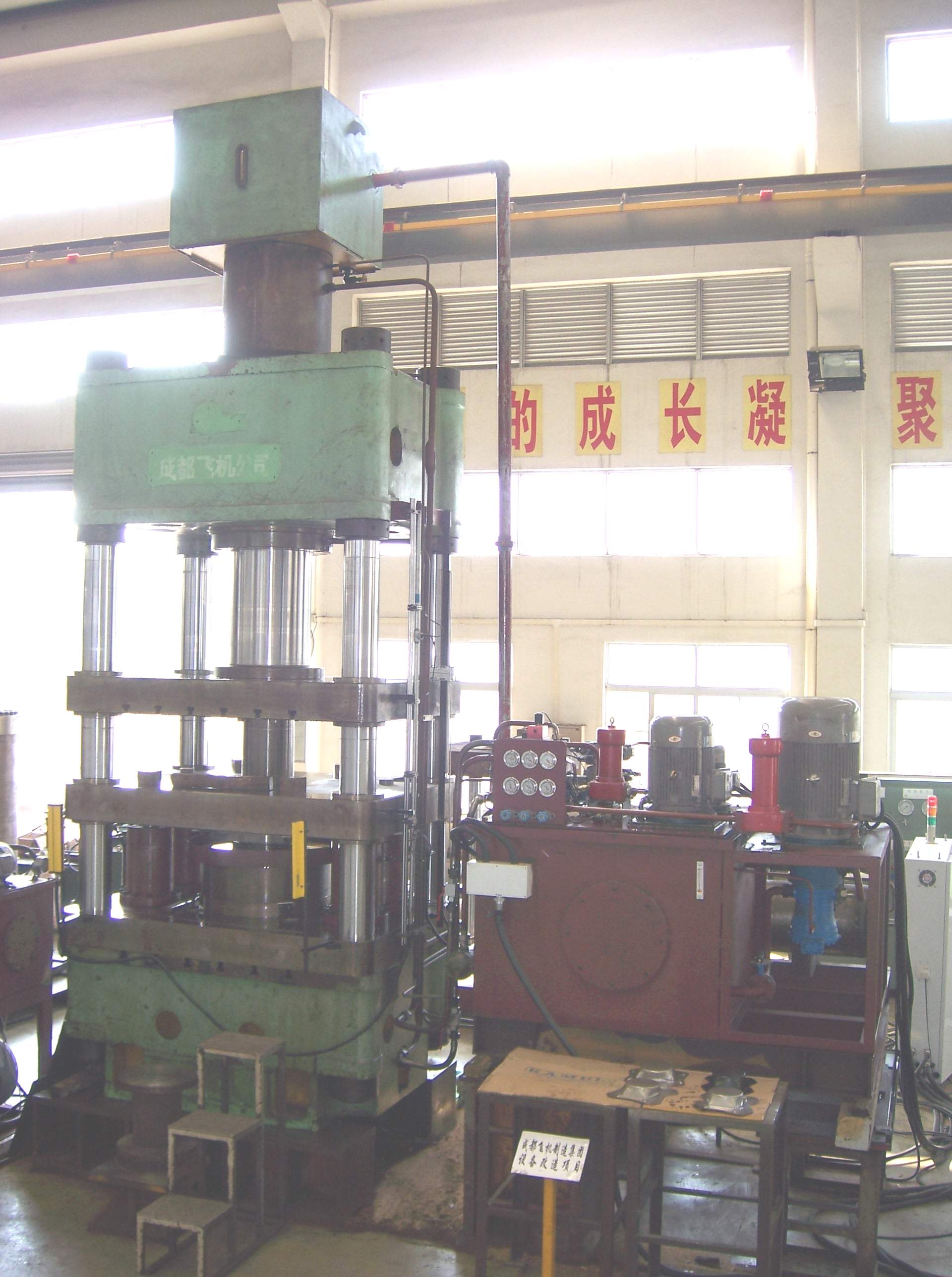

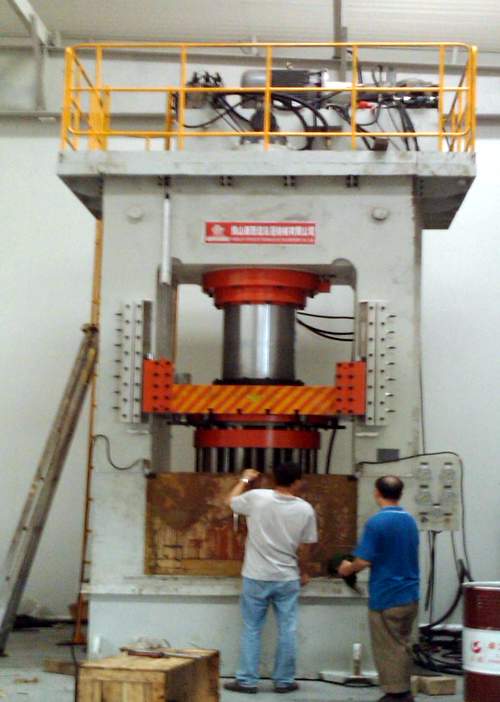

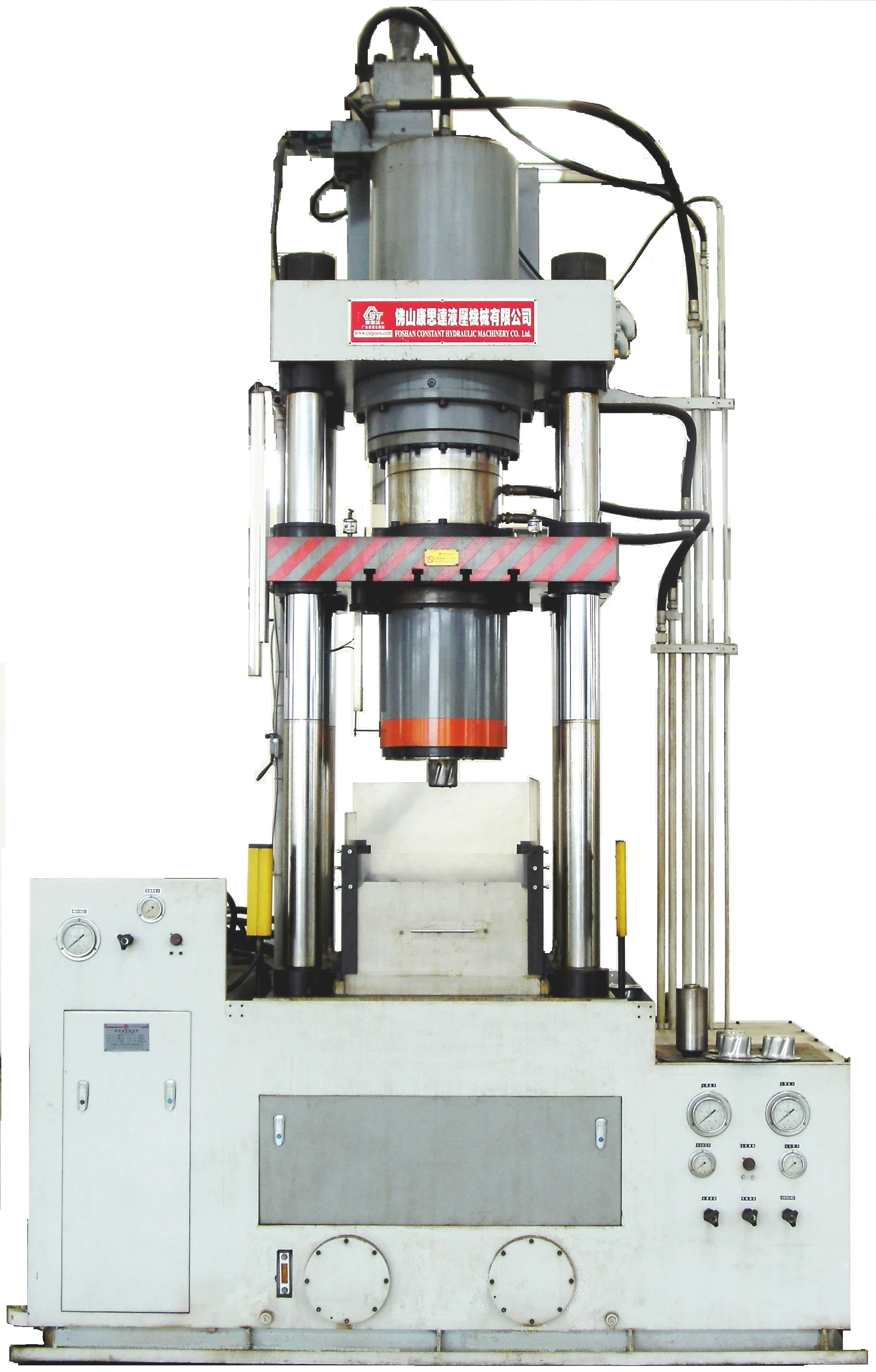

Liquid deep drawing hydraulic press machine

Usage: complicated structure of small and medium-sized batch sheet parts deep drawing forming process of liquid (hydraulic forming).



Plate liquid deep drawing process characteristics:

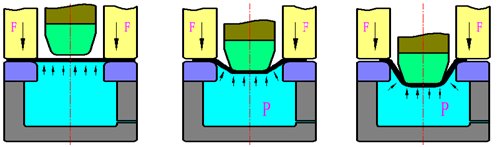

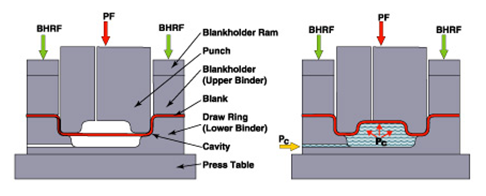

With rigid metal mould (convex or concave die) and another half of liquid as a flexible "mould" (concave or convex die), at the same time as a liquid as the medium pressure, force sheet metal under high pressure to deformation of metal mould, and the shape of the metal mould is consistent. The springback after forming parts of small, low reduction ratio, high accuracy, can be formed under the condition of ordinary rigid drawing touch difficult forming parts, or complex sheet deep drawing parts.
